2024 CAN-AM MAVERICK R MG1 ECU UNLOCK + BENCH POWER FLASH or E85 RISING RATE FUEL PUMP FLASH. With OPTIONAL MAVERICK R DCT TRANSMISSION TUNE AND CODE SHOOTER

*EVP DISCLAIMER: EVP’s 2024 Maverick R MG1C ECU Unlock & Power Flash Service requires removing and sending in your ECU to: UTV SURGERY 4/36 Ourimbah RD, Tweed Heads 2485 NSW. Please PUT A NOTE WITH YOUR NAME, ADRESS , PH NUMBER, VIN NUMBER AND STAGE TUNE REQUIRED with your physical ECU.

The MG1 Unlock takes approximately 4 TO 6 WEEKS to complete AFTER we receive your ECU and sent it to EVP. Including transit to and back USA.

Customers are responsible for purchasing the shipping label and sending the ECU to UTV SURGERY.

DESCRIPTION

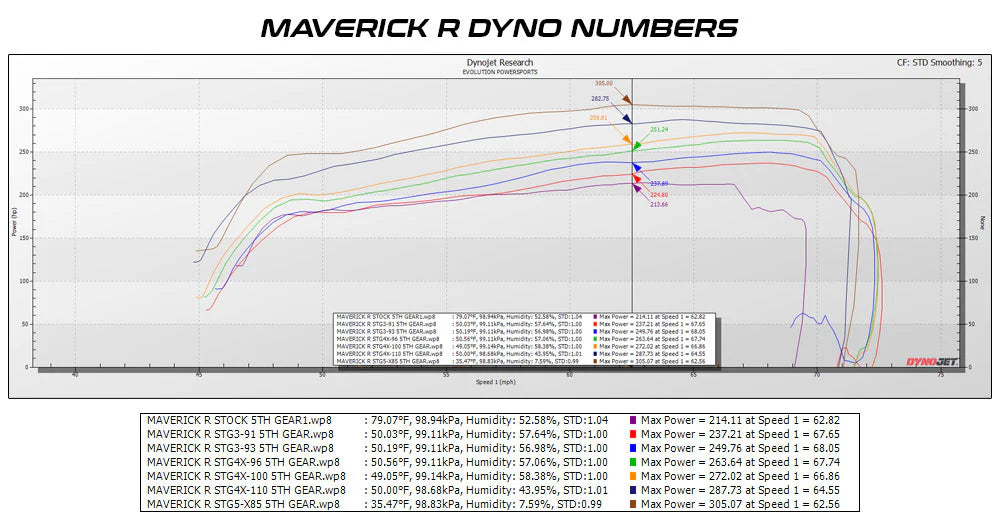

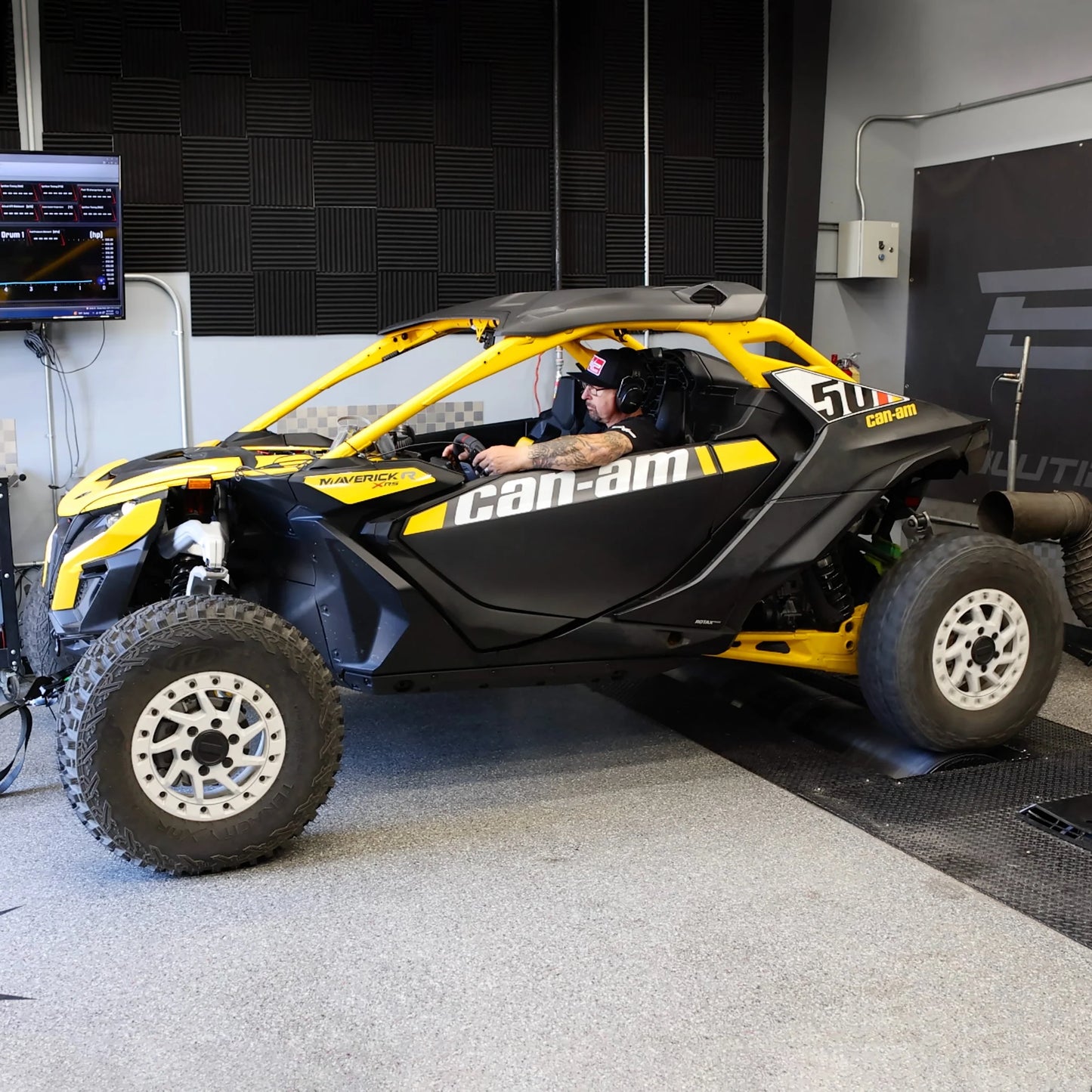

*EVP DISCLAIMER: All Dyno runs were performed in EVP's Phoenix R&D center. Performance and boost numbers may vary based on atmospheric conditions and/or altitudes.

As many already know, Can-Am has released in our opinion the most technologically advanced side-by-side in existence and has delivered it with a DCT transmission. Having a Dual-clutch transmission is not something new in the automotive world, but it's definitely new in the forced-induction side-by-side world. Because this vehicle is equipped with a transmission, we can incorporate different features not commonly found in our industry.

*NEW FEATURE: Basic transmission tuning to match the raised rev limit is now incorporated into all EVP Maverick R Tunes! Evolution Powersports now includes transmission tuning in all packages to refine upshift strategy with a higher-than-stock rev limit.

Advanced transmission tuning with changes to upshift and downshift strategies, along with added clutch pressure, are available separately (see EVP DCT TRANSMISSION TUNNING FOR 2024 CAN-AM MAVERICK R section for more information)

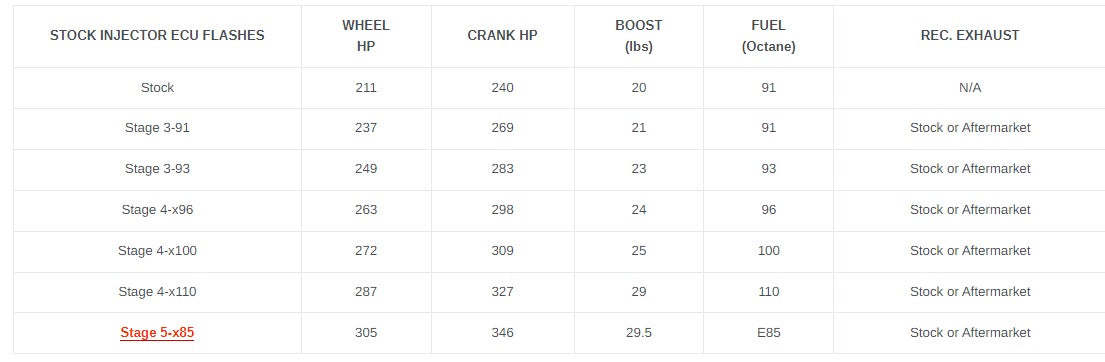

With Stock Injector tuning options that deliver up to 68 more horsepower to the wheels on 110 octane (~32% increase vs. stock!), EVP's ECU Power Flash for the Maverick R is a 100% transformation that turns a day in the dunes or dirt into an exotic supercar-style driving experience. Rev limiters are raised to enable longer, harder pulls and higher top speeds, engine and intercooler fans have been revised to optimize cooling, plus standard EVP tuning features like enhanced boost response, Race Start, two-foot braking and much more delivers the most fun and potent horsepower-per-dollar upgrade available for the Maverick R.

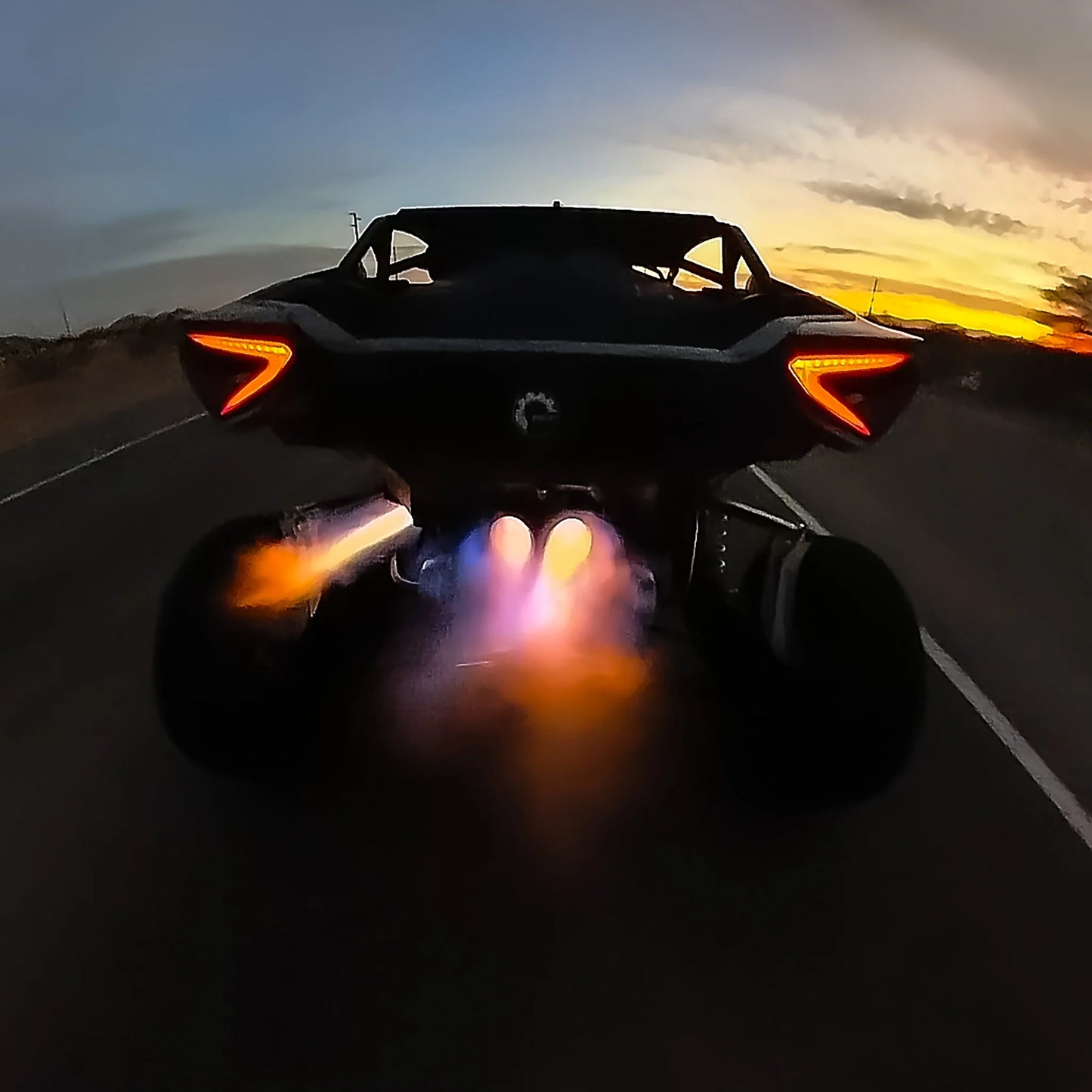

EVP Co-Founder Todd Zuccone’s background comes from the automotive space, where his previous company tuned and built some of the fastest Porsches in the world. This knowledge and expertise has been applied to the new Maverick R. One of the features brought over from the automotive tuning scene is the “pops and bangs” on decel. This allows the driver to create a backfire pop through the exhaust while shooting flames out of the exhaust pipe. A fun, immersive feature that brings a unique driving experience to this vehicle. Another feature incorporated is revised rev limit strategy for upshifts. We've created a DCT "burble," which further enhances how the car sounds and feels while emitting flames out of the tailpipe on upshifts. These two added upshift and downshift features completely change the driving characteristics of the vehicle, as well as allows the driver to become completely engaged in the driving experience thanks to the level-10 fun factor and killer sound. When you take these features and combine it with a meticulously designed exhaust system that emanates the most incredible supercar sound and adds additional power, this vehicle is completely transformed.

EVP Co-Founder Jim Zuccone has spent countless hours understanding the new Dual Clutch Transmission and how it could be improved through software tuning. After owning other vehicles such as the Yamaha YXZ and Honda Talon, Jim was not a fan of geared transmissions on small displacement engines. They really take the fun out of riding – especially in the dunes, since they never seem to be in the right gear for a given situation. The Maverick R is far better than those vehicles, but still suffered from similar issues. Gaining control over the transmission functionality was paramount, while adding launch control was another feature Jim wanted and knew our customers would expect. The result of this work is the best implementation of launch control yet.

The Maverick R R&D was truly an EVP Team effort with EVP Wisconsin tuning the Maverick R to beta level on various octane fuels, EVP Mode in Phoenix refining, field testing and adding the killer “pops and bangs” feature. EVP Mode also addressed the fuel pump so E85 tunes could be developed while EVP Wisconsin gained full control over the transmission and implemented launch control (coming soon).  The focused efforts by the two brothers have transformed the Maverick R into what can only be described as the most fun, lively, and engaging SXS that you have yet to experience.

Choose between standard EVP tuning files or the new “Pops & Bangs” tunes that provide an audible cool factor for a fully immersive driving experience from the leaders in fast and furious side-by-sides.

TUNE FEATURES:

• Basic transmission tuning to match the raised rev limit is now included with all EVP Tunes
• Cold start/idle fixed - engine starts and idles like it should!
• Massive power gains
• Speed limits raised
• TQ limits removed
• Engine cooling fan On/Off temps lowered to turn the fan on at lower temperature, keeping the engine cooler.
• Intercooler fan operation revised to turn on as soon as the vehicle receives any throttle input while in gear. This way you don’t have to listen to the fans at idle while still maximizing cooling without the added expense of a fan override. Having the ECU control this functionality in a refined way is always best rather than having to turn the fan on or off manually.
• Transmission fan operation is revised to come on at a lower temperature than stock. This keeps the DCT fluid cooler than stock, but doesn't risk it becoming too cold. The transmission is designed to operate within a certain temperature range. A fan override switch not only adds additional expenses, but when left on it can cool the fluid temperatures too far below operating temperature, which may lock the vehicle out of certain functions and/or limit power. Having the ECU control this function is always best to keep the transmission within its correct operational range.
• Rev Limit Increased for longer pulls and higher top speeds
• Improved overall power delivery, more consistent power in warm climates
• Improved throttle response
• Enhanced boost response and boost pressure for more power
• Integrated 2-Foot Braking: Gas and brake at the same time

• Software is Based on the latest Can-Am software update
• Race exhaust is highly recommended when running the "Pops & Bangs" tune (EVP Race Exhaust coming soon)
• Standard tunes compatible with OEM muffler and catalytic converter


                                                             E85 TUNE

EVP E85 & RISING RATE POWER FLASH NOTE: EVP Rising Rate ECU Power Flashes with the Rising Rate 340LPH Fuel Pump Assembly or Conversion Kit are only recommended for customers who want to run E85 fuel.

• RISING RATE 340LPH ASSEMBLY: Full Drop-In Replacement with no modifications required, includes fully assembled OEM Fuel Assembly and OEM Float.
• RISING RATE 340LPH CONVERSION KIT: Requires modifying and reusing the OEM Maverick R Fuel Assembly including OEM fuel pickup, float, gasket and cap

EVP NOTE:

• An EVP Silicone Charge Tube is required for all Maverick R Rising Rate ECU Power Flashes - You must use the auxiliary port that sees boost pressure only. Do not use the BOV vacuum/boost port from the BOV.

                                                             DCT TUNE

DCT TUNE FEATURES

• Optimizes the Maverick R's DCT transmission to provide amazing gains to the performance and overall “feel” of the vehicle
• Completely transforms the riding experience through revamped upshift and downshift strategies
• Shifting becomes almost comparable to CVT where, regardless of the gear, power is always on tap
• Keeps the Maverick R from “hunting for the right gear” in high-load terrain

DCT TUNE DESCRIPTION

EVP's Research and Development Team has worked hard for months developing and testing to bring the Maverick R community the best-performing upgrades possible for your ride.

This brings us to a new feature that will blow your mind and destroy your competition - transmission tuning. Much like with a CVT, optimizing the Maverick's DCT provides amazing gains to the performance and feel of the vehicle. The issue with the Maverick R and the stock transmission tuning is that it's always hunting for the right gear. This is especially true when the vehicle is in high-load terrain such as dune riding or fast desert riding with big tires. The 999cc engine does not have enough power at lower RPMs (5000-7000) to pull a gear, so the stock transmission strategy is to downshift under load to put the transmission back into the power band. This is quite annoying in the lower gears, especially during dune riding, because some downshifts are for a split second before another upshift, where the car hardly moves, and it feels like the downshift didn't accomplish anything. In the higher gears, it is the opposite issue; with stock transmission tuning, the transmission won't downshift when you want it to. This takes the fun out of riding and can put you in a precarious position in some technical situations.

The second issue is the shift points are very low compared to the engine RPM characteristics. We have found that the engine continues to build power to a peak at roughly 9100 RPMs, then falls off slightly. With the soon-to-be-released Maverick R intake and an EVP tune, power climbs steadily to 9500 RPM. (Note: there is a Technical Service Bulletin (TSB) for early production Maverick R's for the timing chain tensioner, this TSB must be completed before tuning the vehicle for higher than stock revs). By extending the shift points by 800 RPMs, even with the stock tune, the annoying downshift will build considerable speed and not feel unnecessary. When we add power with the engine tune, the benefits become even more pronounced by building significantly more speed between gears as the engine revs out. Depending upon the gear, this can be 5-10 mph faster over the stock shift points.

For the downshift strategy, as the fuel octane increases, we can add power at lower RPM with increased boost and ignition. On the 110-octane tune, the engine produces 50-wheel horsepower over stock at 6000 rpms, and on E85, it is 72 whp! This completely transforms the vehicle and reduces the need for a downshift, especially shifts 4^th to 3^rd and 3^rd to 2^nd. We have refined the downshift strategy based on how much additional power we can add in the lower RPM range. The 91-octane tune has a relatively stock downshift strategy whereas the 110-octane and E85 have a highly modified downshift strategy. We cannot express enough how much this improves the car. It completely revitalizes the Maverick R from a fair dune car, at best, to one of the most fun SXS you will ever experience. The shifting is now almost CVT-like, where no matter what gear you are in, it feels like the shifts are necessary, and power is always on tap.

In addition to all the other product development work we have been doing on the Maverick R, we found the much-needed time to implement an adjustable launch control similar to the MG1 X3. A geared transmission makes it a bit more complex to implement, but since EVP brought factory ECU launch control to the SXS community in 2018, we did not let the challenges stand in our way!
